Autel MaxiCharger AC Compact 22kW-WH-Socket

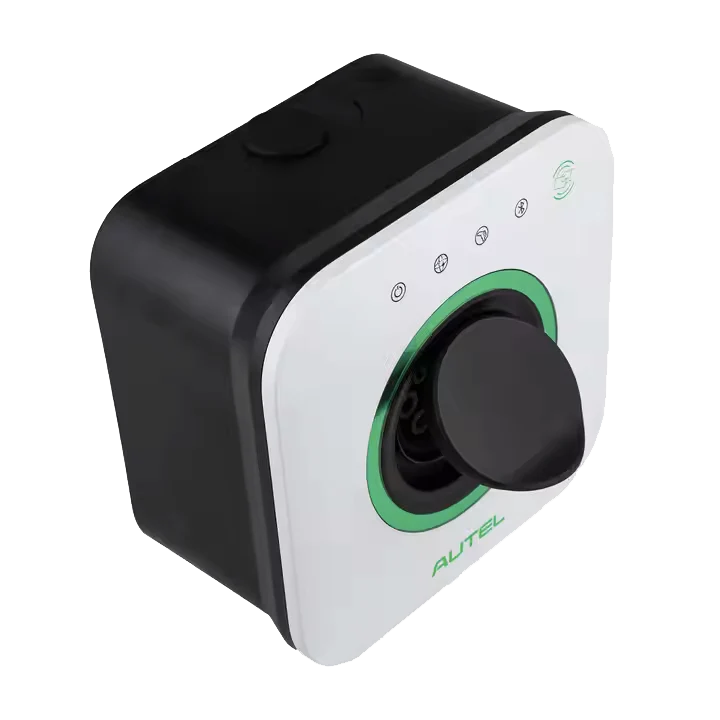

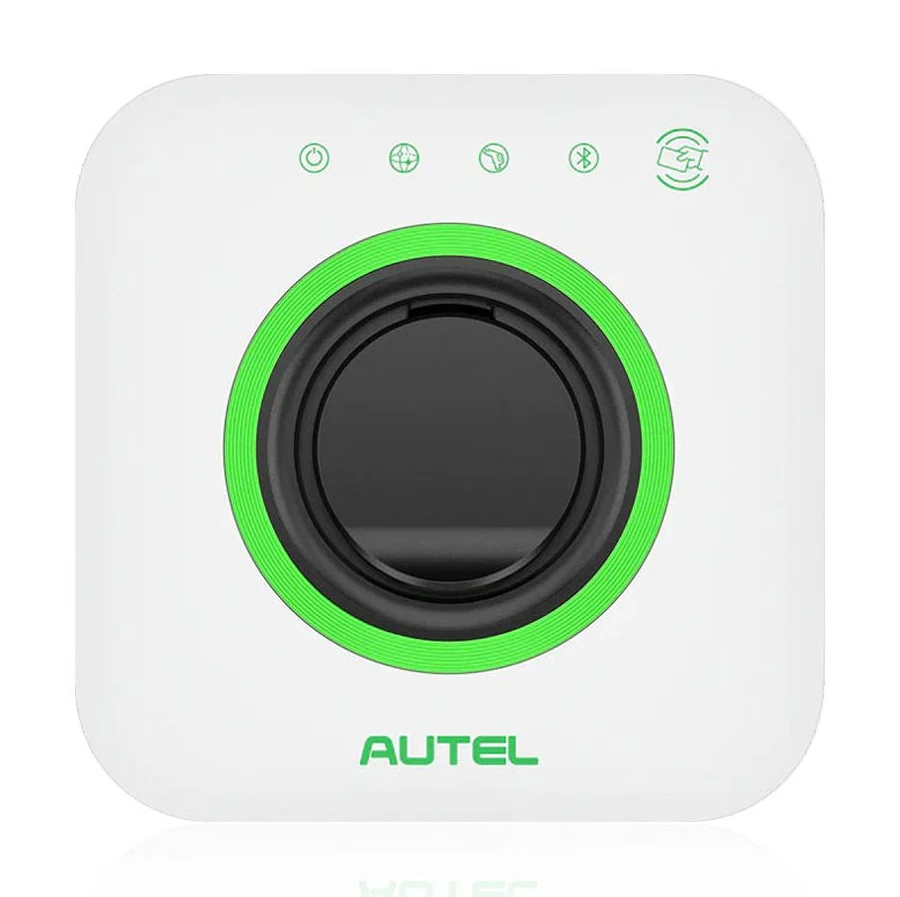

Autel 22 kW AC Wallbox Maxi Charger with Socket

This is a 22 kW AC electric vehicle (EV) charger designed to charge EVs with a Type 2 socket — meaning you (or the installer) plug your own appropriate Type 2 charging cable into it to connect to the car. It’s part of the Autel MaxiCharger AC Compact series and is suitable for residential, commercial, or fleet charging installations.

⚡ Key Features & Specs

Charging Power & Mode

• Up to 22 kW AC charging (three-phase, 32 A).

• Mode 3 AC charging with a Type 2 socket that accepts standard EV charging cables.

Electrical Compatibility

• Single-phase (up to 7.4 kW) or three-phase (up to 22 kW) supply.

• Input/output voltages: ~230 V single-phase / ~400 V three-phase.

Safety & Protection

• Integrated protections: overcurrent, overvoltage, undervoltage, surge protection.

• Residual current detection (AC + DC).

Build & Environment

• Weather/impact ratings like IP54 (dust/water) for the socket variant.

• Designed for indoor or outdoor installation with appropriate mounting.

Connectivity & Smart Features

• Works with the Autel Charge App and Autel Charge Cloud for monitoring and control.

• Connectivity options typically include Bluetooth, Wi-Fi, Ethernet, 4G, and support for OCPP 1.6J.

• User authentication via app, RFID card, or auto-start.

  Certifications & Warranty

  • Meets EU/IEC safety standards (CE, TÜV, etc.).

  • Typically comes with a 36-month warranty (extensions may be available).
