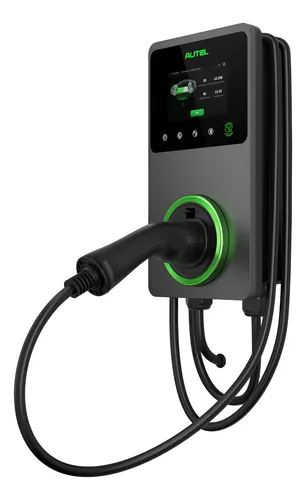

Autel MaxiCharger AC wallbox 7KW AC W7-C5-DG

Autel MaxiCharger AC Wallbox EU AC W7-C5-DG (7 kW) electric vehicle charging wallbox — a smart home/business EV charger:

Key Specs & Features

⚡ Power & Charging

• AC output power: 7 kW (suitable for residential AC charging)

• Rated current: 32 A

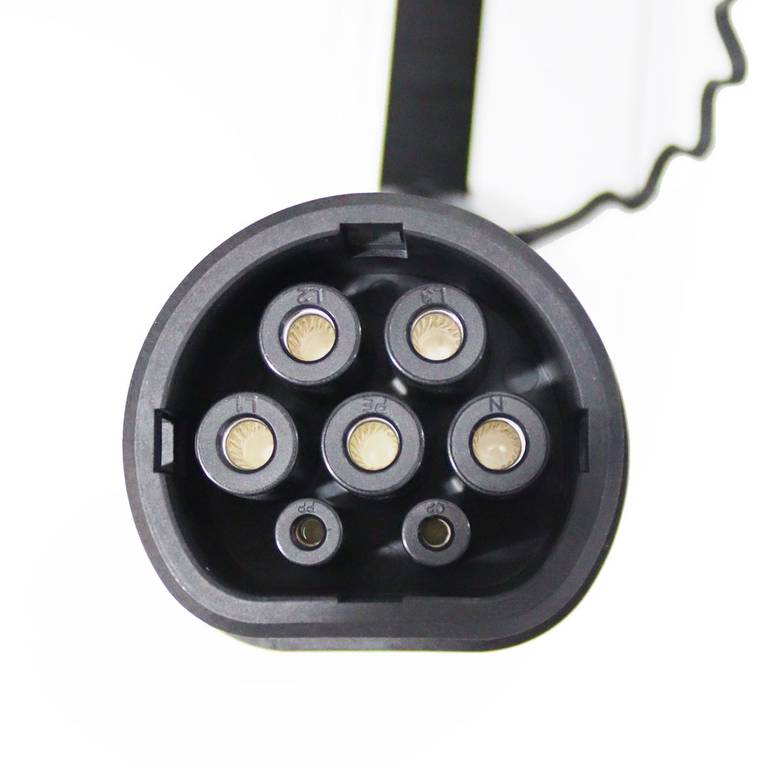

• Charging mode: IEC 61851-1 Mode 3 with Type 2 connector/cable included (5 m)

🔋 Electrical & Installation

• Input voltage: AC 400 V ±15 % (compatible with single- or three-phase installations in many regions)

• Frequency: 50 Hz

• Mounting: wall or pole (indoor/outdoor)

• Requires installation by a qualified electrician (local regulations apply)

📶 Connectivity & Control

• Connects via Bluetooth, Wi-Fi, Ethernet

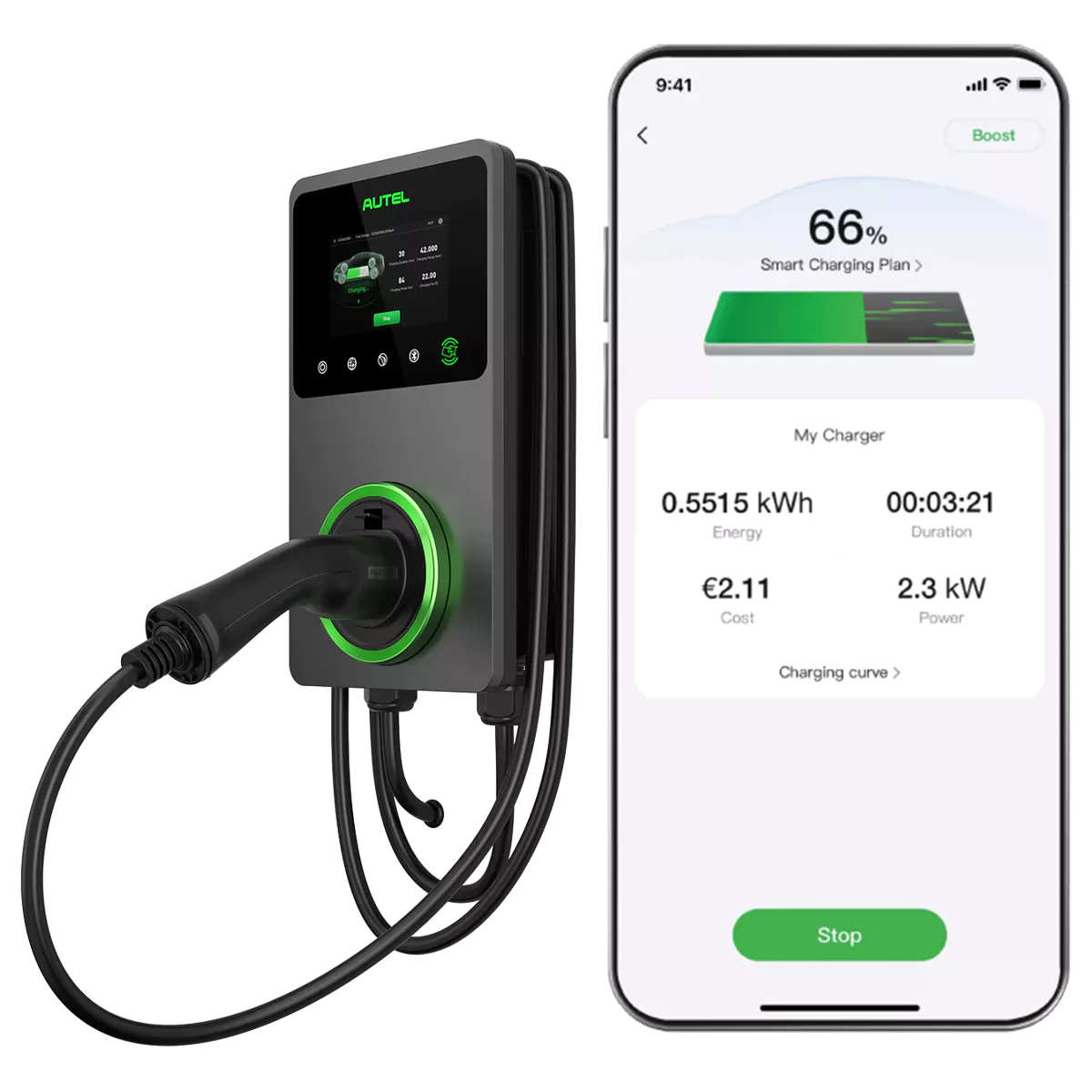

• Remote monitoring, scheduling, firmware updates and control via the Autel Charge app / cloud platform

• User authentication via app or RFID cards

🛡️ Safety & Protection

• IP65 rating (dust/water resistance suitable for outdoor use)

• Multi-layer safety protections: overcurrent, overvoltage, overheating, short-circuit, etc.

• Compliance with CE (and often local electrical safety standards)

• Optional residual current device protections (AC/DC) depending on version

  Smart Features

  • Dynamic load management and potential integration with energy systems (solar/utility) via cloud service

  • Scheduling and real-time charging data available in the app
