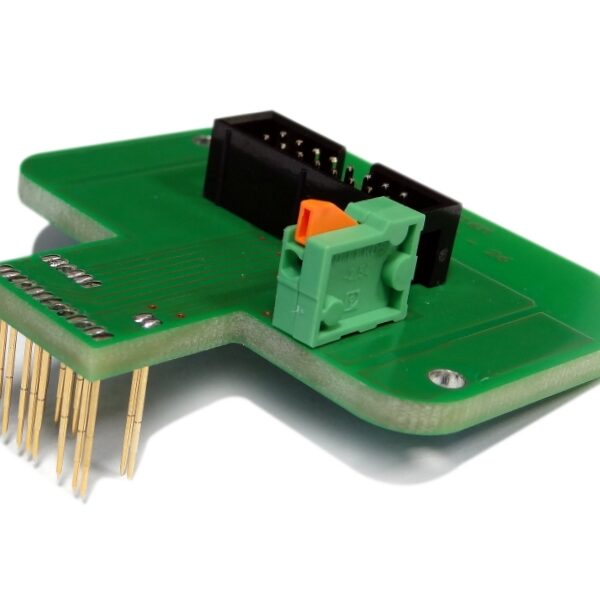

Dimsport New Trasdata Positioning Frame Adapter for DENSO – NEC NBD 26 pin

The Dimsport New Trasdata Positioning Frame Adapter – NEC NBD 26‑pin (often referenced by the internal part code F34DM024) is a hardware adapter used with the DIMSport New Trasdata ECU programming and tuning tool. It’s specifically made for working with DENSO ECUs that use a NEC 76F00xx series processor and a 26‑pin NBD connection.

🔧 Purpose & Function

• Positioning Adapter: It’s designed to position and connect the ECU’s 26‑pin interface securely to the New Trasdata tool’s metal positioning frame so you can perform bench mode reading/writing operations.

• No Soldering: When used with the NIC or metal positioning frame system from New Trasdata, it helps avoid direct soldering to the ECU board by providing a terminal interface.

• Target ECUs: Compatible mainly with DENSO Toyota ECUs featuring NEC NBD 26‑pin processors (such as the NEC76F00xx series).
