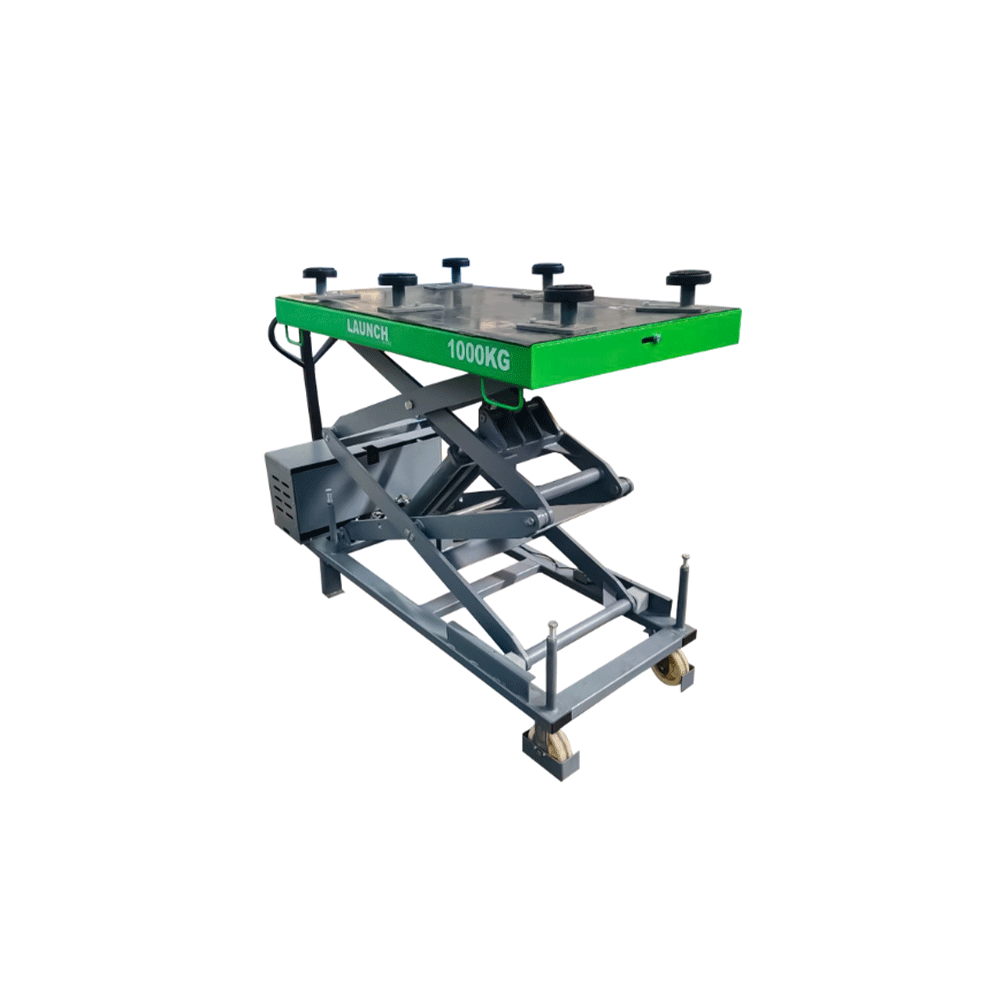

Launch TLT615D EV Battery Pack Lifting Platform

Key Features

• Designed for EV battery pack removal/replacement: Specifically built to support and lift large battery packs from EVs.

• Electric lift & safety lock: Electrically controlled lifting and lowering, with a mechanical safety lock to secure the platform at height.

• Heavy-duty construction: Made from durable, rigid tubular steel with abrasion and shock resistance for workshop environments.

• Space-saving: Compact design suitable for workshops with limited space.

Technical Specifications

• Rated Lifting Capacity: 1500 kg (about ~3300 lbs) – suitable for most EV battery packs.

• Lowest Height: ~1200 mm.

• Maximum Height: ~1850 mm.

• Platform Size: ~800 mm (W) × 1380 mm (L).

• Supply Voltage: AC 220 V, 50 Hz (common workshop power).

• Operating Voltage: DC 24 V.

• Power: 2.2 kW.

• Lift/Lower Times: <30 s to raise, <40 s to lower.
