Autel Portable Adas System MA600 ALL SYSTEMS 2.0T Calibration System + MaxiSys MS909 Diagnostic Tablet

CGDI CG100 V6.5.8.0 CG100 PROG III Full Version Airbag Restore Device including All Function of Renesas SRS and Infineon XC236x CGDI CG100 V6.5.8.0 CG100 PROG III Full Version Airbag Restore Device including All Function of Renesas SRS and Infineon XC236x CGDI CG100 V6.5.8.0 CG100 PROG III Full Version Airbag Restore Device including All Function of Renesas SRS and Infineon XC236x

Autel Portable Adas System MA600 ALL SYSTEMS 2.0T Calibration System + MaxiSys MS909 Diagnostic Tablet

104400 DH

product number
categories
Diagnostic Tools
manufacturer
Autel
factory
Autel
Condition
new
product descriptions
Autel MA600 ALL SYSTEMS 2.0T Wheel Alignment is becoming more portable. The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple. Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more. Portable expansive affordable
Manufacturer Autel
Condition New
Weight 200000 g

Autel Portable Adas System MA600 ALL SYSTEMS 2.0T Calibration System + MaxiSys MS909 Diagnostic Tablet


Autel Portable Adas Product Description:

Autel MA600 ALL SYSTEMS 2.0T Wheel Alignment is becoming more portable. The easy to use MA600 frame is quickly folded and disassembled for transport, to calibrate in many locations, creating a smarter service made simple. Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS MA600 is an ideal calibration tool for glass replacement and more. Portable expansive affordable

Diagnostic Tools From Autel with Product Number: MK19590
This Weight Product: 200000g

Autel Portable Adas Specs:

Manufacturer: Autel
Condition: New


MAXISYS MA600 PORTABLE ADAS SYSTEM

AUTEL MOBILE ADAS MA600 CALIBRATION SYSTEM

Autel’s MA600 Portable ADAS Calibration system includes a collapsible aluminum calibration frame, 2-line and 5-line centering and aligning lasers, laser-assisted reflectors and Lane Departure Warning (LDW) calibration target set for the calibration of vehicle camera systems. The MA600 is compatible with the MaxiSYS ADAS tablet, or the MaxiSYS MS906BT or higher tablet series when upgraded with ADAS software (purchased separately).

  • Portable ADAS Calibration System
  • Perform Vehicle LDW Camera Calibrations
  • Collapsible Aluminum Calibration Frame with Travel Case
  • Includes 2-Line Centering and 5-Line Alignment Lasers
  • Includes LDW Targets for Numerous Vehicle Manufacturers
  • Compatible Autel ADAS Tablet and MaxiSYS MS906BT Tablet Series and Higher when Upgraded with ADAS Software



Autel Portable Adas TABLET SPECIFICATIONS

TABLET SPECIFICATIONS
Tablet Operating System Android™ 4.4.2, KitKat
Tablet Processor Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Tablet Memory 2GB RAM & 64GB On-board Memory
Tablet Display 9.7-inch LED capacitive touch screen with 1024×768 resolution
Tablet Connectivity
  • Wi-Fi (802.11 a/b/g/n/ac)
  • USB: 2.0
  • BT v.2.1 + EDR
  • SD Card (Support up to 32GB)
  • HDMI
Tablet Camera (rear) 8.0 Megapixel, AF with Flashlight
Tablet Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Tablet Audio
Input/output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jack
Tablet Power and Battery
  • 11000 mAh 3.7 V lithium-polymer battery
  • Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Tablet Input Voltage 12 V (9-24 V)
Tablet Power Consumption 6.5 W
Tablet Operating Temperature 0 to 50°C (32 to 122°F)
Tablet Storage Temperature -20 to 60°C (-4 to 140°F)
Tablet Dimensions (WxHxD) 300 mm (11.81„) x 220 mm (8.66„) x 50 mm (1.97„)
Tablet Weight



  • NW: 1.42 kg (3.13 lb.)
  • GW: 8.655 kg (19.08 lb.)



Tablet Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
CALIBRATION FRAME & PATTERN BOARD SPECIFICATIONS
Calibration Frame Dimensions (WxDxH) 2510mm (98.82„) x 714mm (28.11„) x 1480-2105 mm (58.27-82.87„)
Calibration Frame Weight
  • NW: 74.5 kg (164.24 lb.)
  • GW: 152kg (335.1 lb.)
Pattern Board Size (LxW) 1360mm (53.54„) x 960mm (37.80„)
Crossbar Length 2510mm (98.82„)
Measurement Range of Crossbar’s Height
  • Height min=350mm (13.78„)
  • Height max=950mm (37.40„)
Measurement Range of Pattern Board ‘s Height
  • Height min=1000mm (39.37„)
  • Height max=1600mm (62.99„)
Rated Power 24 V, 3A
Laser Rated Power 3V, 25mA
Laser Battery Type AA 2×1.5V
Calibration Frame Working Temperature 0°C to 50°C
Calibration Frame Storage Temperature -20°C to 60°C
Laser Class Class 2
Certification CE, FCC, RoHS



Autel Adas Packages Compare

MaxiSys ADAS Functions

Lane Departure Warning (LDW)

Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.

ADAS Calibration Frame Comparison

The MA600 is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE and MSADAS. All tablet models require an additional one-time purchase software application upgrade, except MSADAS. Tablets with previously active ADAS application software will not be compatible with MA600.

MaxiSys ADAS Calibration Frame-MA600

Portable Calibration Frame and Accessories
MA600 provides LDW calibration for camera based systems. Within 2 minutes, one person can perform accurate frame placement.

MaxiSys ADAS -- MA600 Parts and Accessories

The MA600 provides accurate calibration procedures for camera based systems with accessories and oversize AVM patterns available to purchase separately. The new step-by-step tutorial graphics and fine line laser leveling process offers a quicker and more efficient vehicle centering and squaring to calibration frame procedure. It's the new generation MaxiSYS MA600, smarter service made simple.



Adaptive Cruise Control (ACC)

Reflector

Positions the calibrate radar for VW, Porsche, BMW, Nissan, Infiniti, Hyundai and KIA vehicles.

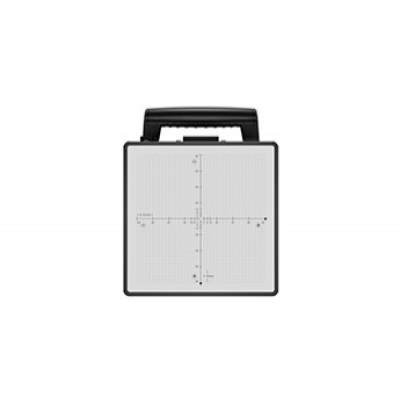

Radar Calibration Plate

Calibrates radar for Volkswagen vehicles by attaching to calibration frame



Radar Calibration Plate

Calibrates the Continental radar for Nissan and Infiniti vehicles by attaching to the sliding board on the calibration frame

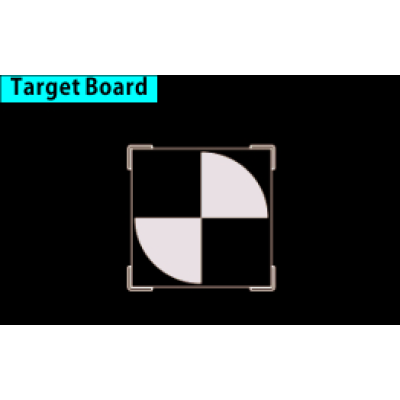

Lane Departure Warning (LDW)

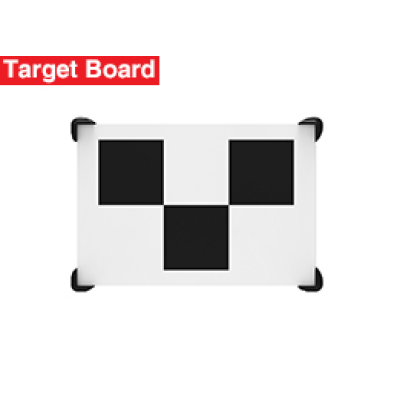

Honda/Acura LDW II

CSC0601/08-L

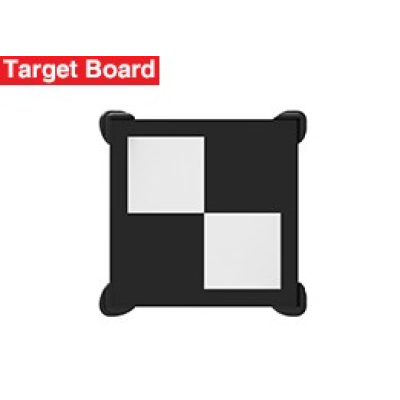

Honda/Acura LDW II

CSC0601/08-R



Honda LDW I

CSC0601/05

Toyota/Lexus LDW I

CSC0601/11

Toyota/Lexus LDW II

CSC0601/15

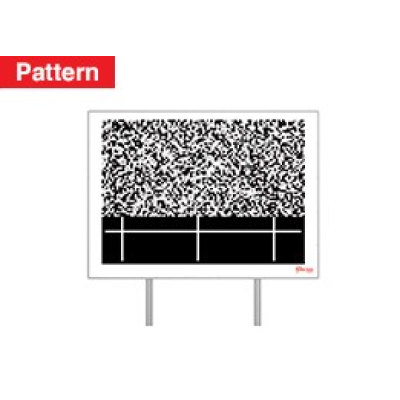

Hyundai/KIA LDW II

CSC0601/09

Mercedes-Benz LDW

CSC0601/02

Nissan LDW I

CSC0601/03-L

Nissan LDW I

CSC0601/03-R

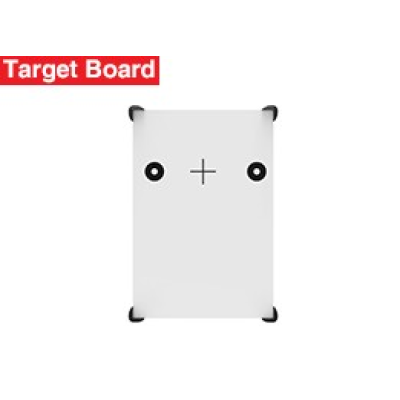

Nissan/Infiniti/Renault LDW II

CSC0601/06-L

Nissan/Infiniti/Renault LDW II

CSC0601/06-R





Hyundai/KIA LDW I

CSC0601/07

Nissan LDW III

CSC0601/04-L

Nissan LDW III

CSC0601/04-R

Mazda LDW I

CSC0601/12

Mazda LDW II

CSC0601/13-L

Mazda LDW II

CSC0601/13-R

Mercedes LDW II

CSC0601/19

Mitsubishi LDW

CSC0601/22-L

Mitsubishi LDW

CSC0601/22-R

Canvas/Subaru LDW I

CSC0601/14

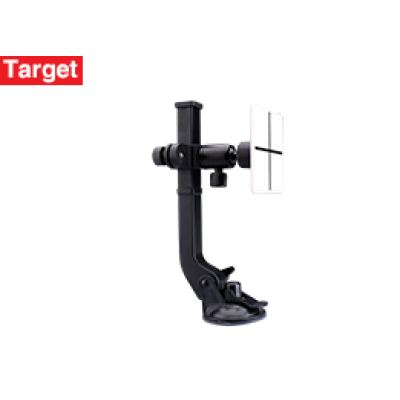

Hyundai/Kia LDW

CSC0701/23

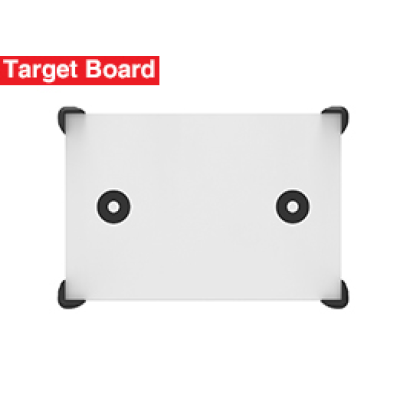

Nissan LDW I

CSC0601/03

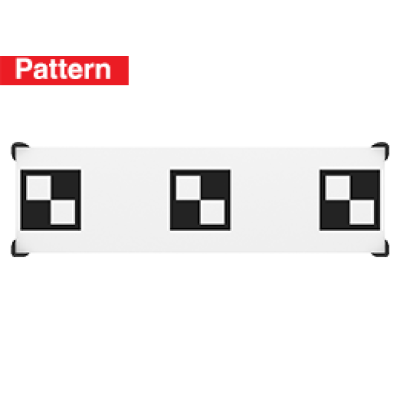

Toyota LDW III

AUTEL-CSC0601/25

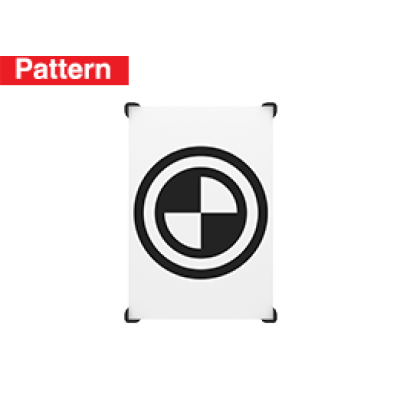

Honda LDW III

AUTEL-CSC0601/24-01

Suzuki LDW

AUTEL-CSC0601/23

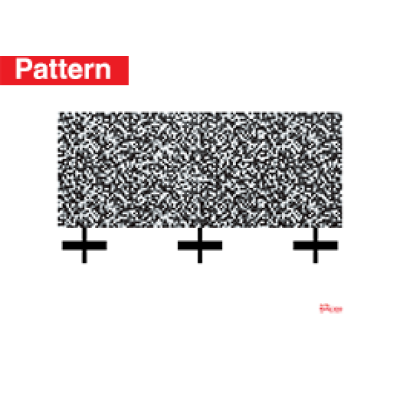

Subaru LDW II

AUTEL-CSC0601/17

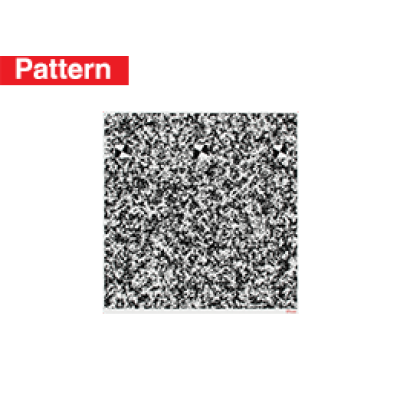

Daihatsu LDW

AUTELCSC0601_27





Night Vision (NV)

NV Calibrator (Benz)

Calibrates night vision system of Benz vehicles.

NV Calibrator (VW, Audi, GM, and Porsche, etc.)

Calibrates night vision system of VW, GM and Porsche vehicles by attaching to the sliding board.



Around View Monitoring (AVM)

AMERICAN
GM / CHEVY / CADILLAC / BUICK / JEEP / CHRYSLER / DODGE / FORD / LINCOLN

Ford-AVM

CSC1004/05

Cadillac-AVM

CSC1004/06





ASIAN
NISSAN / ACURA / HONDA / TOYOTA / LEXUS / INFINITI / KIA / MAZDA / HYUNDAI / SUBARU

Honda-AVM

CSC1004/03

Honda-AVM

CSC1004/02

Mitsubishi-AVM

CSC1004/09

Toyota-AVM

CSC1004/10



EUROPEAN
BENZ / PORSCHE / AUDI / VW / BMW / MINI / FIAT / VOLVO / JAGUAR / MASERATI

Porsche-AVM

CSC1004/07

VW, Porsche, etc.-AVM

CSC1004/01

VW-RCW/AVM

CSC0806/01

VW-AVM

CSC0804/01

PSA-AVM

CSC1004/08





Blind Spot Detection (BSD)

Radar Calibration Box

Calibrates blind spot detection system of VW, Porsche and Mazda vehicles by attaching to the sliding board on the crossbar of the calibration frame.



Rear Collision Warning (RCW)

Mercedes-Benz-RCW

CSC1006/01

Nissan-RCW

CSC1006/03

Nissan-RCW

CSC1006/04

Nissan-RCW

CSC1006/05



Assistance Tools

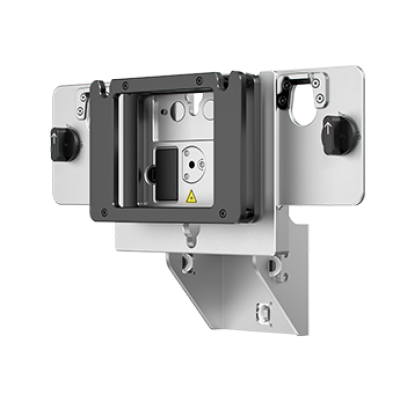

Mounting Plate Package

Enables the MaxiSys MA600 to perform ACC, BSD, and NV calibration by attaching to the calibration frame.



MaxiSys ADAS Software

Precise MaxiSys ADAS Calibration Software

Based on the powerful MaxiSys platform, Autel presents the MaxiSys ADAS with the original complete diagnostic functions and comprehensive ADAS calibration. Combined with the service manual, the procedures are presented with graphic instruction. The MaxiSys tablet has the best possible OE-level diagnostic coverage to offer complete ADAS and diagnostic solutions for smarter repair and calibration.

Please order the calibration frame packages separately.



FREQUENTLY ASKED QUESTIONS

  • What is ADAS?

    The Advanced Driver Assistance System (ADAS) uses image processing cameras, radar, light detection and ranging and other sensors to monitor vehicle surroundings and detect potentially dangerous situations. Purpose: to increase safety through advanced situational awareness and reduce collision possibilities.

    Sensors used in ADAS include cameras, radars, lasers and ultrasound. They can detect light, heat, pressure and other variables used to monitor the state of vehicle. Usually they locate in the front and rear bumpers, side mirrors, vehicle cab and wind shield glasses.

  • What are the applications of ADAS?

    ADAS usually includes Traffic Message Channel (TMC), Intelligent Speed Adaptation (ISA), Vehicular Communication Systems and other driver assistant systems. The specific systems are as follows:

    • Vehicle Cab:

    1) Lane Departure Warning System

    2) Lane Keeping Assist

    3) Traffic Sign/Signal Recognition

    4) Night Vision System

    5) Driver Status Monitor

    6) Electric Vehicle Warning

    7) Hill Descent Control

    • Front:

    1) Parking Assist

    2) Adaptive Front/Lighting System

    3) Adaptive Cruise Control

    4) Pedestrian Detection

    5) Emergency Brake

    • Rear:

    1) Reverse Image

    2) Parking Assist

    3) Rear Collision Warning

    • Side:

    1) Surround View

    2) Blind Spot Detection

  • When to use ADAS?

    Under normal circumstances, after repair in an accident, calibration of the relevant auxiliary systems need to be performed. When disassembling or reinstalling monitoring components such as cameras, radars, and sensors, replacing the vehicle ECU, or the vehicle height has been changed, auxiliary and other systems need to be calibrated.

    For example: ACC calibration needs to be performed in the following cases.

    1. Repair or replace the Adaptive Cruise Control (ACC) radar sensor control unit

    2. ACC radar sensor deviation angle out of normal range

    3. Adjust position of the ACC radar sensor on the vehicle body

    4. Repair or replace bumper or radiator grill

    5. Adjust chassis

  • How to use MaxiSys ADAS?

    Perform the following steps prior to setting-up calibration toolset.

    ? Park the vehicle on a flat and level surface with its front wheels pointing straight and ensure there are no objects

    in front of the vehicle.

    ? The vehicle’s coolants and engine oil should be at recommended levels and the gas tank full. The vehicle should

    not be carrying any load (passengers or cargo).

    ? Attach the VCI to the vehicle and connect the diagnostic tool to the vehicle (if connected through cable, please

    pass cable through window).

    ? Close the vehicle doors.

    ? Adjust the tire pressure to the recommended value.

    ? The preparation measures vary by vehicle and system. Please follow the instructions on the MaxiSys ADAS

    tablet to ensure accurate calibration.

  • What is ADAS Front-view Camera?

    The front-view camera captures what is in front of the vehicle. It is used in a number of ADAS systems, including Lane Departure Warning (LDW), Lane Keeping Assist (LKA) and Traffic Sign/Signal Recognition (TSR) systems, often in conjunction with other sensors, cameras or sensing systems to provide input data.

  • What is ADAS 360°Camera?

    The 360° or Surround View Camera System uses multiple camera views to create one 360° top-down (bird’s eye) view surrounding the vehicle. This system is used in both passive (displayed instructions) and active (autonomous) vehicle parking assist systems.

  • What is ADAS Radar Sensor?

    ADAS radar sensors detect fixed and moving objects at different distances around the perimeter of a vehicle. Different Radar types and frequencies are used in various ADAS systems. Ultra short-range radar (USRR) and short-range radar (SRR) provide data for blind-spot detection (BSD) and lane-change assist (LCA), while systems including adaptive cruise control (ACC) use longer range radar.

  • How can I get the ADAS software?

    To get the valuable ADAS calibration software, you can purchase the MaxiSys ADAS tablet or purchase the ADAS calibration software upgrade for your existing MaxiSys tablet.

  • What are the technology tools of ADAS and where are they in my vehicle?

    Cameras, sensors, ultrasound, radar and LIDAR are some of the systems used to capture the driving environment data, including travelling or static vehicles position, pedestrian location, road sign, driving lane and intersection detection, road (curves) and driving conditions (poor visibility or evening driving), use that information to instruct the vehicle to take its predetermined action. Cameras, sensors and sensing systems are typically location in front and rear bumpers, windshield, front grill and side and rear view mirrors.

  • What if my car is not in a horizontal position?

    ADAS calibration procedures should be performed on a level floor. If an alignment lift is used for leveling, the Autel calibration software can provide adjustment information and the calibration frame can be easily raised or lowered to be level with the vehicle.

  • Which areas does Autel MaxiSys ADAS support?

    The MaxiSys ADAS currently supports calibrations for most today’s ADAS-enabled vehicles in the USA, Asian, European markets.

  • What are the requirements for the calibration shop?

    1.Perform calibration procedures indoors without object obstructions

    2.No exterior light sources to cast uneven surface shadows

    3.Some procedures require bright background light alignments

  • What are the requirements for the calibration surface?

    Park the vehicle on a flat and level surface with its front wheels pointing straight and ensure there is room around the vehicle (generally there should not be objects within three meters or ten feet of the front of the vehicle).

  • Why is MaxiSys ADAS a comprehensive solution?

    Based on the powerful MaxiSys platform, Autel presents the MaxiSys ADAS. The MaxiSys ADAS not only provides the original complete diagnostic functionality but also offers comprehensive and precise ADAS calibration.

    Combined with the best possible OE-level diagnostic coverage, the MaxiSys tablet has evolved far beyond our original tool capabilities to offer complete ADAS and diagnostic solutions for smarter repair and calibration.

    A: Comprehensive Functionality

    1.The MaxiSys ADAS offers all diagnostic and maintenance services of the MaxiSys tool.

    2.The MaxiSys ADAS’s ADAS module covers many vehicle makes, including Benz, BMW, Audi, VW,

    Porsche,Infiniti, Lexus, GM, Ford, Volvo, Toyota, Nissan, Honda, Hyundai and Kia.

    3.The MaxiSys ADAS supports the calibration of multiple driver assistant systems, including Adaptive Cruise

    Control (ACC), Night Vision System (NVS), Lane Departure Warning (LDW), Blind Spot Detection (BSD),

    Around View Monitoring (AVM), Rear Collision Warning (RCW) and Heads-up Displays (HUD).

    4.The MaxiSys ADAS supplies graphic illustrations and step-by step instructions.

    5.The MaxiSys ADAS provides demos to guide the technician through the calibration.

    B: Complete Tools

    While the calibration procedures vary by make and the tools differ by driver assistant system, the MaxiSys ADAS calibration toolset can fulfil the flexible installation and precise calibration for a wide range of vehicle makes and systems.

    1.The calibration toolset allows flexible assembly for different driver assistant systems and vehicle models.

    2.The calibration frame is equipped with a sliding board for easy movement and positioning.

    3.The toolset provides calibrations with millimeter accuracy via the precise marks on rulers and

    the laser positioning.

  • Which vehicle actions require ADAS system diagnostics or ADAS sensor calibration?

    Sensor Replacement / Accident Repair / Wheel Alignment / Windshield Replacement / Diagnostic Service

  • What is the easiest way to check the vehicle to confirm which ADAS modules are active?

    During the Pre-SCAN procedure, the MaxiSys software will scan all modules in all systems and list on a single screen, then provide visual ADAS icons next to the active ADAS modules. This shows technicians which ADAS systems are active and helps prepare a more detailed repair plan which includes the required ADAS calibration procedures after the repairs are complete.

  • How do I know if the ADAS recalibration was successful?

    The technician can review the post-calibration scan to confirm if the module DTC is cleared. The ADAS module calibration will not complete if the calibration steps were not followed correctly.

  • What are the different types of ADAS calibrations and are they brand specific?

    Depending on vehicle type, either a Stationary or Dynamic calibration procedure is required (in some vehicle types both are required) to calibrate ADAS sensors to vehicle modules.

    • Stationary calibrations are completed in a shop environment and requires the use of targets or patterns to complete.

    • Dynamic calibrations require the vehicle to be driven on roadways for a certain amount of time with well maintained road markings.

  • What are the shop environment requirements for calibration procedures?

    • Flat and level surface with enough room around the vehicle to complete calibration procedures. (generally, there should not be objects within the 15 foot by 30 foot calibration area)

    • Perform calibration procedures indoors without object obstructions.

    • No exterior light sources to cast uneven surface shadows.

    • Some procedures require bright background light alignments.

  • What vehicle preparation is required before performing calibration procedures?

    • The vehicle coolants and engine oil should be at recommended levels and the gas tank full.

    • The vehicle should not be carrying any load (passengers or cargo).

    • Adjust the tire pressure to the recommended value.

    • Attach the wireless VCI to the vehicle DLC.

    • Make sure the MaxiSys is paired to the VCI, then make sure to close all the vehicle doors.

    • Establish communication from the diagnostic tool to the vehicle.

    • Follow the MaxiSys ADAS software instructions to ensure accurate calibration. Preparation measures vary by vehicle and system.

  • How do I know what patterns and calibration procedures to use?

    The Autel MaxiSys ADAS Calibration Application software provides graphic step-by-step instructions that are vehicle model specific to confirm the correct patterns are used during the correct calibration procedures. Your MaxiSys software confirms this information is correct, based on the vehicle information confirmed from the AutoSCAN feature, to confirm which active ADAS modules in any vehicle system may need a calibration procedure completed.

  • Does the MSADAS tablet provide other scan tool functions than ADAS calibration?

    a. Yes, the MSADAS provides all the same diagnostic and maintence services as the MS908SP, including Pre / Post Scanning

  • Do I need a new scan tool for ADAS calibration, if I already have an existing MS908 / MS908P / MS908S / MS908SP / MS908E?

    a. You can purchase an ADAS UPGRADE to add ADAS capabilities to your existing Autel MaxiSys scan tool.

    b. If you do not have an Autel scan tool, then you should purchase an MSADAS scan tool package for best value.

  • Can I purchase just the ADAS application upgrade without the calibration frame to complete ADAS calibration procedures?

    a. No, the MaxiSys ADAS application requires a code (QR code scan) from the calibration frame to activate the software.

    For more information, see 'ADAS Frame Banding' on the DOWNLOAD page.

  • If I want to add individual targets or calibration tools later, are they available for purchase?

    a. Yes, the specialty fixtures, existing targets and new vehicle coverage targets are available for individual purchase.

  • Depending on which vehicle systems I am concerned with, which ADAS calibration kit should I purchase?

    a. LDW, LKA, ACC (forward looking only) - You need the LDW kit (ADS-LDWPACKAGE)

    b. AVM, RCW, RCA (around view / 360 view / rear looking) - You need the Complete Kit (ADS-ADASCOMPLETE)

    c. Night Vision, Radar (includes Blind Spot etc.) - Also in the Complete Kit (ADS-ADASCOMPLETE)

    *can be added as additional accessories to the LDW kit

  • Do I need someone to assemble and or set up the calibration frame?

    a. No, the complete assembly is a simple 20-25 minute process. Graphic instruction and standard screws are included.

  • Are training options necessary for working on ADAS calibrations?

    a. No, The MSADAS software features step by step illustrated instructions for placing the calibration frame and targets.

    b. If a customer requests general ADAS training, I-CAR, CTI, and AutoTech have ADAS classes utilizing the Autel tool.

  • What are insurance companies paying for calibrations?

    a. Insurance companies are typically paying between $200 and $300 for each ADAS calibration.

    b. The ADAS application also provides the Pre and Post-SCAN features, which insurance companies pay $100-$150 for.

  • Other than a clear 30 foot x 15 foot area, what are the other working shop bay requirements to complete ADAS calibrations?

    a. No obstructions or 2 post lifts. An alignment bay will work if there is approx. 9 1/2’ between the frame and lift

    b. Level floor in the bay or the lift being level at 3 foot or lower.

    c. No “checker board” or other geometric patterns on the walls or floor

    d. Able to close bay door and or block exterior light sources that cast uneven surface shadows

  • What are the different types of ADAS calibrations and are they brand specific?

    Depending on vehicle type, either a Stationary or Dynamic calibration procedure is required (in some vehicle types both are required) to calibrate ADAS sensors to vehicle modules.

    • Stationary calibrations are completed in a shop environment and requires the use of targets or patterns to complete.

    • Dynamic calibrations require the vehicle to be driven on roadways for a certain amount of time with well-maintained road markings.

  • Can I activate multiple tool ADAS applications from one calibration frame?

    a. No, the activation “bonding” is unique to a single ADAS application tool from the Autel ADAS calibration frame.

    b. You can use an “activated” ADAS application tool with any Autel ADAS calibration frame.

    For more information, see 'ADAS Frame Banding' on the DOWNLOAD page.

  • Does the MSADAS tablet provide other scan tool functions in addition to ADAS calibration?

    a. Yes, the Autel MaxiSYS ADAS Tablet includes all of the diagnostic and maintenance functions as the Autel MaxiSYS MS908SP, including Pre & Post-SCAN reporting and J-2534 programming interface

  • Can I activate multiple ADAS-Capable tablets with one calibration frame?

    a. Yes, you can add multiple ADAS capable tablets to your calibration frame. However, only one type of calibration frame can be activated on each tablet. Be sure to select the correct calibration frame as this selection cannot be un-done and two version of the ADAS software cannot reside on the same tablet.

  • Can I purchase just the ADASUPGRADE without the calibration frame to perform ADAS calibration procedures?

    a. Yes, however, a large portion of vehicles require static calibrations, where special equipment is placed around the vehicles at specified locations. Remember, the tool will ask which type of calibration frame you are using when you add the ADAS software. If you don’t have a calibration frame yet, select the option you would most likely get.

  • What are the different types of ADAS calibration and are they brand specific?

    a. There are two types of ADAS calibration, STATIC and DYNAMIC. The type of calibration required is determined by the vehicle manufacturer.

    • STATIC CALIBRATIONS are performed in the service bay using vehicle specific targets and patterns. Static calibrations require controlled conditions, such as bright even lighting, flat level floor, no clutter behind the targets, etc.
    • DYNAMIC CALIBRATIONS are performed while driving the vehicle under very specific conditions determined by the vehicle manufacturer. These conditions include, calibrating during the day, clearly visible lane markings, clear weather conditions, specific driving speeds,flat roads with minimal hills or curves, minimal traffic, etc.
  • Which vehicle actions require ADAS system dianostics or ADAS sensor calibration?

    a. ADAS sensor or camera replacement, collision repair, four wheel alignment, changes in ride height (within vehicle manufacturer’s specifications), windshield replacement, certain mechanical repairs which require the removal of bumper covers, grill, etc., ADAS related diagnostic service, ADAS sensor or camera removed and reinstalled or changes in tire size (within vehicle manufacturer’s specifications).

  • What is the easiest way to check the vehicle to confirm which ADAS module are active?

    a. Performing a Pre-Scan with your Autel MaxiSYS will provide a list of all modules currently communication of the vehicle data network. An ADAS icon will display next to a module with ADAS functionality.

  • Does the calibration frame require assembly?

    a. Yes, frame assembly is a simple 20-25 minute process. Illustrated instructions, hardware and required wrenches are included. We also have an assembly video on the www.maxisysadas.com website.

  • How do I know what patterns and calibration procedures to use?

    a. The Autel MaxiSYS ADAS software displays vehicle specific illustrated step-by-step calibration instructions, which include a list of all needed targets, patterns and accessories required to complete the calibration.

  • What vehicle preparation is required before performing calibration procedures?

    a. The Autel MaxiSYS ADAS software will provide a detailed list of vehicle manufacturer specific calibration preparation instructions. The preparation requirement vary by vehicle make. Some common calibration requirements include:

    • Vehicle must be parked on flat, level surface
    • All fluids must be filled to the recommended levels, e.g. oil, coolant, etc.
    • The fuel tank must be full
    • Tire pressure must be set to placard level
    • No passengers or additional load in the vehicle
    • All doors and hood must be closed
    • Connect an auxiliary battery power supply
  • How do I know if the ADAS recalibration was successful?

    a. At the end of the calibration procedure the Autel MaxiSYS will display a screen indicating the calibration completed successfully. It is a good idea to perform a screenshot at this point and attach this screen to your post scan report. On some vehicle makes calibration parameters will be added to the post-SCAN report which indicate the accuracy of the calibration.

privacy policy
This Privacy Policy sets out the basis on which we will handle any personal data, including without limitation, payment and other data that we collect from you or from other sources or that you provide to us (“Data”). This is in order for you to access and use the arabdiag.ae website or our mobile application (collectively referred to as the “Site”), and the services and applications (collectively referred to as the “Services”). We understand the importance of this data, and we are committed to protecting and respecting your privacy. Please read the following carefully to understand our data practices. By using our services you agree to the handling of data in accordance with this privacy policy.

References to the first person pronoun (or similar) in this Privacy Policy are references to (Arabian Diag Trading), a sole proprietorship registered in the United Arab Emirates (UAE), and references to “you” or “the user” are references to you as an individual or legal person, As appropriate.

What data may we collect from you?
We may collect and process the following data:
1- The data you provide by filling out forms on the site, including the data provided when registering to use the site and other shared registrations (for example, social media logins), subscribing to our services, publishing materials, or requesting other services.
2- The data you provide when entering a competition or promotion through our website, completing an opinion poll or voting process, or submitting reviews, testimonials, or comments.
3- The data that you provide to us, or that we may collect from you, when you inform us of any difficulty you face when using our site.
4- Record correspondence if you contact us.
5- General, aggregated, demographic and non-personal data.
6- If you download or use our mobile application, we may be able to access details regarding your location and the location of your mobile device, including your device’s unique identifier.
7- Details of the transactions you conducted through our website and the details of how we prepared and delivered the goods you requested.
8- Details about your computer, including, for example, your IP address, operating system and browser type, as well as data relating to your general use of the Internet (for example: by using technology that stores data on or accessing your device , such as cookies, conversion tracking code, web beacons, etc. (collectively referred to as “cookies”).
9- Your email address that was provided to us by third parties who confirmed to us that they obtained your consent to share your email address.
10- Any other data that we consider necessary to enhance your experience in using the site.

How will we use your data?
We may use data in the following situations:
1- To provide you with information, products or services that you request from us or that we think you might be interested in, and where you have agreed to be contacted for such purposes.
2- To provide you with services based on where you are located, such as advertising, search results, and other content tailored to you.
3- To implement the obligations resulting from any contracts concluded between you and any other party using our site, or between you and us.
4- To improve our services and provide better and more personalized services.
5- To ensure that the content of our site is presented in the most effective way for you and the device you use to access our site.
6- To notify you of changes made by our website.
7- For any other reason we deem necessary to enhance your browsing experience on the website.
8- To manage incentive programs and fulfill your requests for these incentives, and/or to allow you to participate in competitions and notify you in the event of victory.



To whom can we disclose data?
Data about our customers is a very important part of our work. Therefore, we share data only as described below and only with companies that follow practices that have protective features that are, at a minimum, similar to those practices described in this Privacy Policy:
• Other parties.
To provide our Services, we may cooperate with other companies affiliated with us or service providers that are not affiliated with us (for example: logistics companies used to deliver products to you, marketing companies, payment processing companies to conduct online transactions, etc.). In order to process your transactions, these other companies may store data in a digital wallet so that your use of our services is more efficient.
You understand how important it is for these companies to have access to relevant data to perform their tasks. We ensure that these companies do not use the data for other purposes. We may also receive data from these companies (for example: delivery data and updated addresses), for the purpose of using it (for example: to correct our records and deliver goods for any purchase you make). By using the site, you agree to the transfer, storage, use, and disclosure of data between our affiliated companies and service providers not affiliated with us, wherever they are geographically located. These companies are contractually obligated to respect data privacy.
• Marketing and promotions.
We may also use data to provide you with information about goods and services that you may be interested in as well as to enhance your experience in browsing and using the site, service messages, new features, improvements, special offers and events of interest. We may communicate with you through various channels, including but not limited to emails, web notifications, posts, telephone, in-app messages, and news article conveyance cards.
We may allow a third party to use the data, for example: we may provide the data to advertisers to help them reach their target audience to enable us to comply with our obligations to advertisers (i.e. by displaying their advertisements to the target audience).
In addition, to participate in some of our competitions and promotions, you may be asked to provide additional data. For example: If you win a competition you may be asked to provide further personal data to confirm your eligibility and award the prize to you. This data is collected by us or by participating sponsors or vendors of promotions. Please note that you should review the privacy policies of that third party to learn how it uses any data it collects.
• Business transfers:
If our company or substantially all of our assets are acquired, customer data will be one of the assets transferred to the new owner.
• Protecting our website and other websites:
We disclose customer account and other personal data when we believe such disclosure is appropriate to comply with laws, law enforcement investigations, and to protect the rights, property, or safety of our users or others. This includes exchanging data with other companies and institutions for several reasons, including fraud protection and credit risk reduction.
Please note that our site may contain - from time to time - links to and from sites belonging to the networks of companies we deal with, our advertisers and our affiliates. If you enter a link from one of these links, please be aware that these sites have their own privacy policies, and that we will not be responsible for Any liability or claim for these policies. Please also check the policies of those sites before submitting any personal data or any other information to them.

How do we store your data?
The data that we collect from you is originally stored in electronic sites and clouds within the country, and we may transfer it or store it in a location outside the United Arab Emirates. It may also be processed by a team working outside the UAE, but this team works for us or for one of our suppliers. This team is involved, among other tasks, in fulfilling your order, processing payment details, and providing support services.
We will store data for as long as necessary in accordance with this privacy policy or if required to comply with any law. Data may be transferred, stored, processed, and used by companies affiliated with us or service providers not affiliated with us in one or more countries outside the country to which you belong. It is also possible that your payment data may be transferred and stored by our affiliated companies to process payments and provide technical support services.



What protection standards do we apply?
We take the necessary steps from a technical, commercial, technical, and administrative perspective to ensure that data is handled safely and in line with this privacy policy, in order to protect data from unauthorized access, change, disclosure, or destruction. We may, for example, use encrypted electronic technology to protect data while it is sent to our site, in addition to an external electronic firewall, and electronic firewall technology on the computer hosting our site so that we can repel malicious attacks on the network. Only employees, service providers and agents who need to know the data will be granted access to it in order to carry out their work.
It is important for you to ensure that your password and the device you use to access our website are protected to avoid any unauthorized access by third parties. You are solely responsible for keeping your password strictly confidential. For example, make sure to log out after you finish using a shared device.
Unfortunately, sending data over the Internet is not completely secure. Although we will do our best to protect data, we cannot guarantee the protection of data transmitted to our site, and you alone bear the risks of transmitting any data.

How can you access and modify data?
You can access a wide range of data about your account and your interactions with the site for the purpose of viewing and, in some cases, updating the data.
*Examples of data that you can easily access on the website:
- Updated data regarding your latest purchase orders.
- Personally identifiable data (including name, email, password, correspondence, and personal advertising preferences).
- Payment settings (including credit card information).
- Email notification settings.

In addition, our system will place cookies when you log in to the site to ensure an enjoyable and smooth user experience across the site. You can deactivate cookies by changing your browser settings. If you disable cookies, this will affect how our site functions and you may not be able to access or use some or all of the functions on the site. For example: Performance cookies collect information about how you use the site - that is, which pages you visit most often - which allows us to provide you with targeted and relevant choices that enhance your browsing and use of the site experience.
We may retain a copy of the data for the purposes of complying with laws, in particular when you update information where we retain a copy of the previous data for our records.

What if we change our privacy policy?
Our business is constantly changing, so our Privacy Policy may be affected and need to be changed in parallel. We will post the current version of this Privacy Policy on the Site and it will remain in effect from the time it is posted on the Site or based on the date specified by us as its effective date.
We may periodically send email reminders of our notices and terms, but you should check back by frequently visiting our site to see the latest changes.
You should check the Privacy Policy regularly. Your continued use of the Site after any changes constitutes your acceptance of this Privacy Policy as amended.


How can you contact us?
If you have any inquiries related to your data on the site, please contact us by email ......................... and provide us with an accurate description of your inquiries, and we will Responding to and processing them.


Delivery policy:

- The customer must ensure that the product is packaged in the original carton or packaged properly to avoid any damage during the shipping process.


You will receive your orders at any time and anywhere when you shop from our website. Delivery fees are added to the total order value.

The delivery period is within 48 hours (two days), but if you order on (Friday), delivery will be made within (three) days, as Friday is an official holiday for delivery companies, taking into account some differences in the dates of delivery days during official holidays.
The speed and accuracy of delivery depends on the information you fill out when registering on our website, so please make sure to provide us with a correct mobile phone number in order to communicate with you when delivering your order, knowing that delivery may be delayed if the delivery representative does not respond or is not present at the address. During delivery.

terms of use :

Welcome to the Arab Diag website (“Website”) which is owned and operated by (Arabian Diag Trading - Sole Proprietorship LLC), a sole proprietorship registered in the United Arab Emirates (UAE) under license number CN-4556621 issued by the Department of Economic Development in Abu Dhabi. Antelope.

These Terms of Use and all additional policies and terms (if applicable) on the Site set forth the terms we provide to you for accessing and using the Site, Services and Applications, including our mobile application (collectively, the “Services”).

Upon your access, registration and/or continued use or access of the Services, you agree to be bound by these Terms of Use with immediate effect.

These terms of use and legal documents are subject to modification by us at any time. Your continued use of the Site following the posting of any change will mean your acceptance of these Terms of Use and the modified legal documents.

About the site
This website is an e-commerce platform that allows Arab Diag to display and sell products, and also allows companies and individuals to purchase a variety of products.

We reserve the right to introduce new services, update or withdraw any services, at our sole discretion without liability.
Registration conditions
You are entitled to register as a buyer and benefit from the Services if you meet the following eligibility criteria:
For buyers:
1- You must be of legal age to be able to purchase products in your country of residence.
2- You must be able to provide an address in the United Arab Emirates for delivery of products.

When you use or access the Services, you agree to the following:
1- You are responsible for maintaining privacy and restricting access to and use of your account and password, and you agree to bear responsibility for all activities that occur under your account and password.
2- You agree to notify us immediately of any unauthorized use of your password or account or any other violation of the standards for safe use of the site.
3- Provide complete, true, accurate and current information about yourself and your use of the Services as specified by us.
4- Not to disclose to third parties (except as necessary or specified by us) the user information provided to you.
5- Cooperate with requests from us to obtain additional information regarding your eligibility and use of our services.
When you use or access the Services, you agree that you will not:
1- Publish, include or upload any inappropriate or prohibited content or materials on our site, including:
A- Content or materials that are morally or religiously inappropriate in any way.
B- Content or materials that do not comply with local law, Islamic law, rules, morals, values, etiquette and traditions.
C- Content or materials that may threaten national security.
D- Content or materials that may promote or fall within the framework of gambling.
2- Securities, including stocks, bonds, instruments, or any other securities or any assets.
3- Living or dead creatures and/or any part of any animal that has been kept or preserved by any artificial or natural means.
4- Alcohol, tobacco products, narcotics, mind-altering substances, sleeping pills, intoxicants of any kind, and medical medications.
5- To the best of your knowledge, materials that are defective, false, damaged, misleading, or may cause harm when used normally for the benefit or health of another user of the site.
6- Non-transferable vouchers.
7- Chemicals or any weapons.
8- Publishing materials for which you do not have the right to share the link or include them.
9- Publishing fake or stolen materials.
10- Violating or circumventing the law, violating any third party’s rights, our systems or policies, or violating decisions related to the status of your account.
11- Use the Services if you no longer meet the eligibility criteria for use, or you are unable to enter into legally binding contracts, or your account has been temporarily or indefinitely suspended.
12- Your failure to pay for the products you purchased, unless there is a legal reason that supports this in any of our policies.
17- Taking any action that would reduce the site’s rating and rating systems.
18- Publishing false, inaccurate, misleading, deceptive, defamatory or similar content.
19- Transferring your account to another party without obtaining prior written approval from us.
20- Publishing unwanted messages, electronic correspondence, or the like.
21- Spreading viruses or any other technology that may harm our services or the interests or property of other users.
22- Breach:

A- The laws of registration, trademark, patent, ethics, advertising, database, and/or any other intellectual property rights (collectively referred to as “Intellectual Property Rights”) that govern us or are licensed to us.
B- Any intellectual property rights related to others.
C- Collecting users’ information without obtaining their consent.
D- Circumventing any of the technical measures we use to provide the Services.
Intellectual property rights
Respect the rights that have been clearly implemented in accordance with the use of these terms:
All content on the Site is our property or the property of our licensors, including but not limited to text, graphics, audio logos, digital downloads and software. We (or our licensors, as the case may be) retain our rights, title and interest in the Site and Services, including by way of example and with the intellectual property rights under these Terms of Use.
You shall have all rights, titles and interests for any reason in the information, materials or other content you acquire through your use of the Services as well as all of your intellectual property rights contained within these Terms of Use and not owned by us.
You agree that it does not include your use of proprietary trademarks so there is no additional consent.
All rights not expressly granted to you in these Terms of Use are fixed by us or our licensors.

Shipping and handling :

Your order will be shipped immediately upon receipt, and the speed of delivery depends on the correct information that customers provide to us, which is (name - emirate - region - contact number).

Orders are placed daily, every morning, except for Sunday, which is a holiday for the company

Delivery takes place on orders from the date of order and within three days if the order is on a Saturday

Guarantee
About warranty:
- Includes our insurances (Arabian Diag Trading) to protect your product from any explicit blessings, encouragement, design or disavowal that may be acquired after purchase.
- In cases where (Arabian Diag Trading) sells the product directly and for specific products, a 12-month warranty will be provided.
In cases where the products were purchased from another seller, that seller's warranties will apply.
- In cases where (Arabian Diag Trading) is considered the seller, the repairs covered by the warranty are carried out in the repair centers designated for us.
In cases where a product is purchased through a seller other than (Arabian Diag Trading), a fully comprehensive warranty applies.
- Prefer the original required warranty services, i.e. the serial number and warranty validity.
- In some cases, a delivery representative will be sent to collect the product from the agent, employee, authorized employee or qualified service center, in this case for a period of time, which will be .......... business days from the date of receipt of the product from the customer's address until the delivery date With the delegate
- Not all products are covered by warranty, always check the product list to see if it is comprehensive in coverage.
- This warranty cannot be extended or renewed or the warranty period can be renewed. Details of your order with your manufacturer.
-If the product cannot be repaired but is still under the manufacturer's warranty, we will offer you a replacement product (from the same seller), and if it is not a replacement, we will provide you with a full refund.
- The customer must carefully ensure that the product is in original cartons or intact packaging to avoid any damage during the shipping process.

Service Guarantee:
The time required to obtain device information or customer approval at “just in time” is not part of the strategic expansion time.
By sending your product to the service center, you agree to use the device as required to ensure its performance in advance so that you can communicate with it
The customer confirmed that all information provided during the claim is correct.

The product will not be covered under coverage in the following cases:
- Defect or damage resulting from the customer’s use and non-compliance with the instructions for use.

Return and Cancellation Policy:

1- If the product reaches the customer and it turns out that there is a manufacturing defect:

- Arabian Diag Trading is committed to ensuring that the products are free from manufacturing defects. In the event that a manufacturing defect is found, the customer has the right to request a replacement of the product by contacting technical support within (7) days of receiving the product and informing them of the defect. Accordingly, we send a representative to return the product to the warehouse and confirm From a manufacturing defect, then sending a new product to the customer instead of the defective product, and the customer does not bear any costs such as return and sending fees.

2- Product guarantee:

Arab Diag Trading gives a guarantee to the manufacturers or suppliers of some products, and this is mentioned in the product description. We are not responsible for any malfunctions or defects in the product for which a guarantee is not given, and it must be kept in the invoice if the product is under warranty.

3- If the cancellation occurs before delivery, no amount will be deducted from the customer.
